5 W handheld UV laser marking machine.

A compact 355 nm system with touchscreen control and a 60 × 60 mm (approx. 2.36 × 2.36 in) marking field. Bring the marking head to the workpiece and prepare text, codes or graphics on the built-in screen.

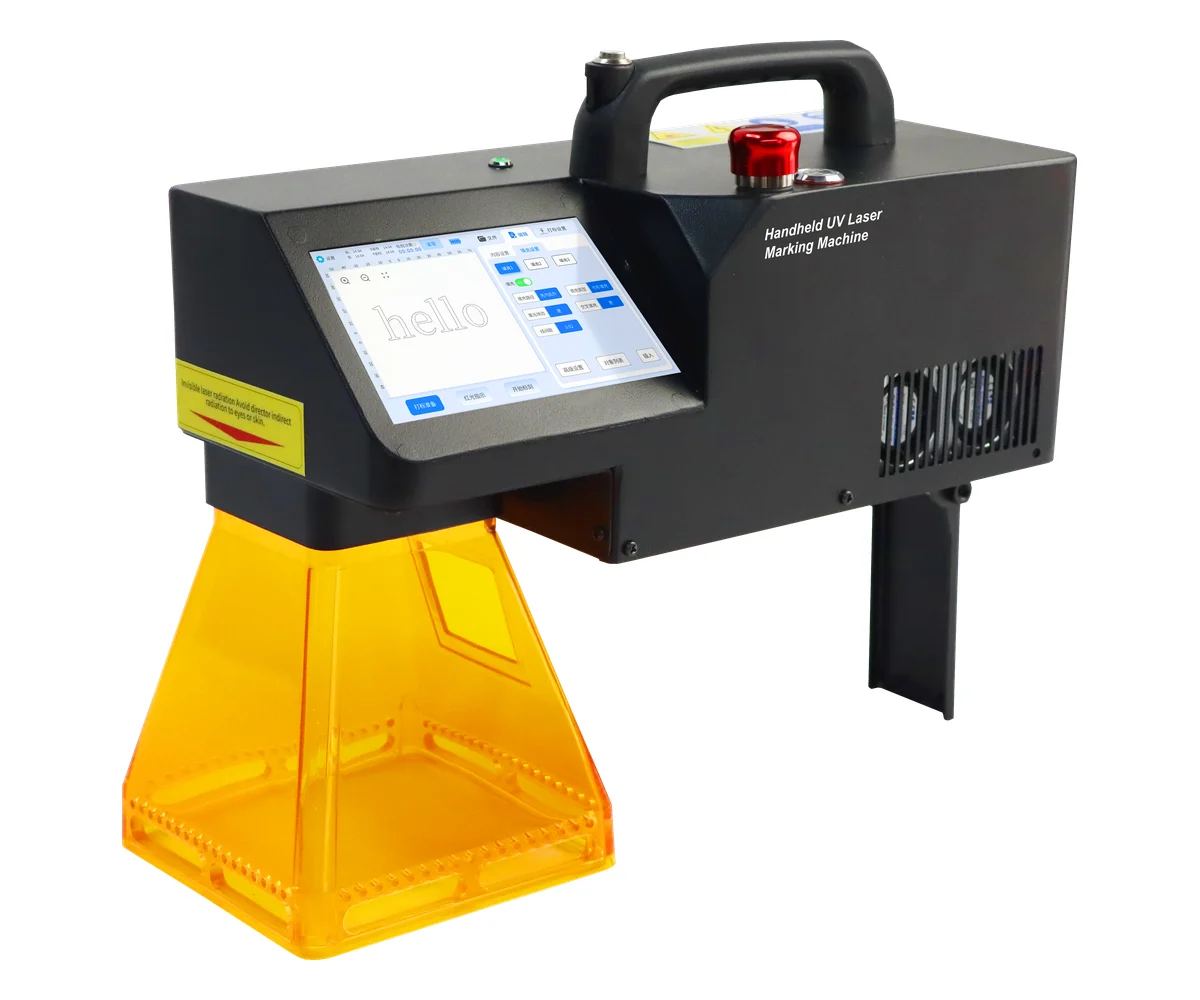

skyfirelaser handheld UV laser marking machine with touchscreen, carry handle and orange marking cover
Portable equipment with an integrated screen, carry handle, emergency stop and marking cover.
Equipment overview

The core configuration.

Start here for equipment selection. Confirm the supplied configuration, accessories and delivery terms with your quotation.

Laser wavelength
355 nm
Laser power
5 W
Marking field
60 × 60 mmapprox. 2.36 × 2.36 in
Cooling
Air cooled
Control
Linux touchscreen
Connection
USB

One 5 W UV configuration is currently offered, powered through a dedicated external adapter. A battery-powered version is not currently available. Mark contrast, depth and processing time depend on the material, artwork and sample conditions.

Planning your setup

Power and transport dimensions.

Check your available supply and delivery arrangements when requesting a quotation.

Mains input
Single-phase 220 V50/60 Hz · dedicated external adapter
Supplier-stated machine size
317 × 131 × 117.5 mmapprox. 12.48 × 5.16 × 4.63 in
Reference carton size
400 × 200 × 150 mmapprox. 15.75 × 7.87 × 5.91 in

The carton dimensions are a packing reference. Confirm the final packed dimensions and shipping details with the quotation before arranging transport.

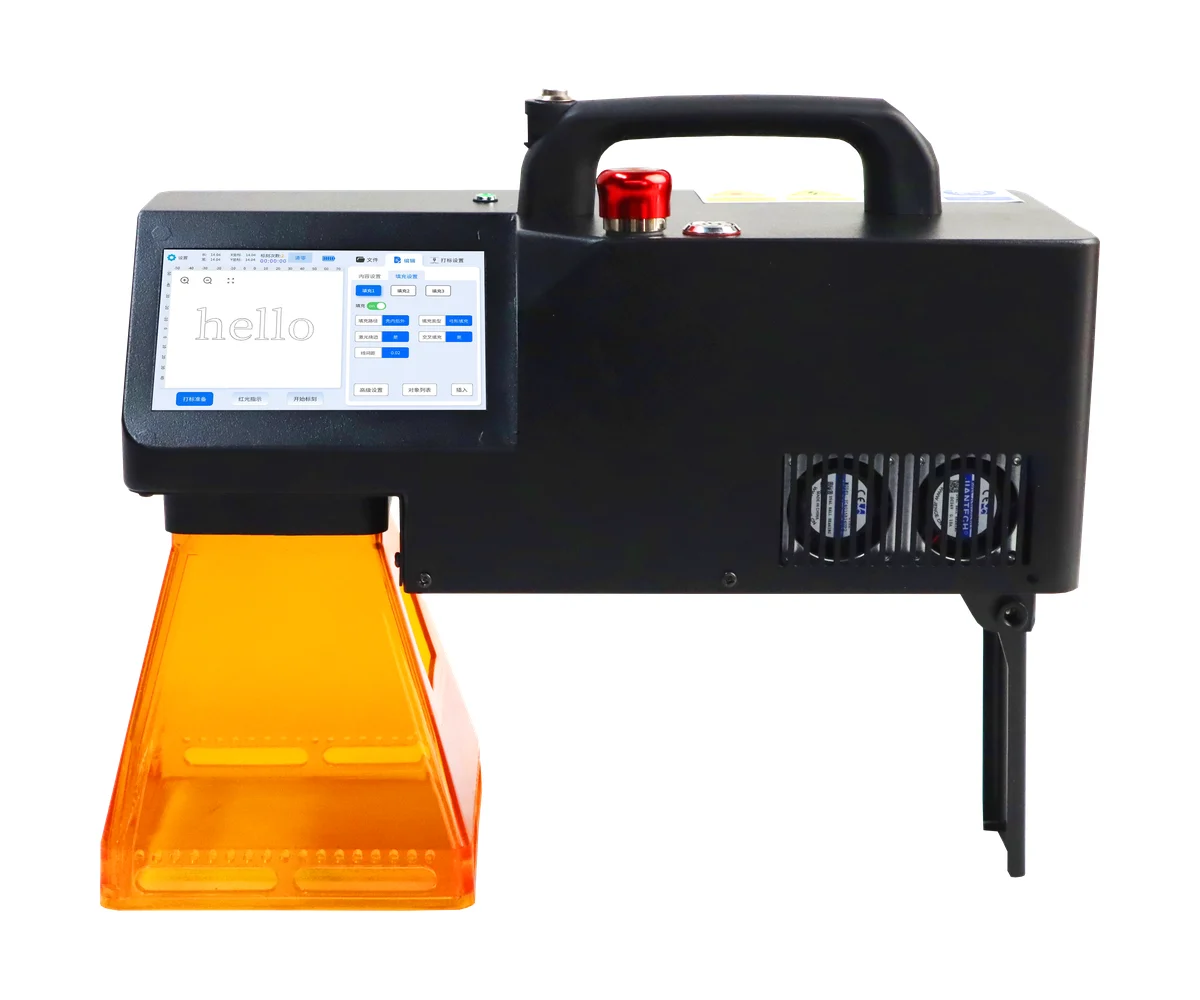

Side view of the skyfirelaser portable UV marking machine showing touchscreen and air cooling vents
A portable handheld format for bringing the equipment to a suitable workpiece.
Practical controls

Prepare the mark on the machine.

Create or import marking content through the touchscreen and USB interface. The system supports text, serial numbers, dates, barcodes, QR codes, vector artwork and bitmap images.

  • Graphic formats include BMP, JPG, PNG, DXF, SVG and PLT.
  • Text imports include TXT and Excel files.
  • Review the artwork, target mark size and required finish before selecting a setup.
Material first

Match the equipment to the actual surface.

Glass, plastics, ceramics and coated or bare metal surfaces can respond differently. Send a material description or sample request to establish what is suitable.

Identification

Text, serial numbers and codes

Share the content, smallest character or code size, and your readability requirements.

Artwork

Logos and graphics

Provide the source artwork, desired mark size and a reference for the finish you need.

Workpiece

Surface, size and position

Include the material grade, coating, dimensions and whether the marking area is flat or curved.

Application examples

See the types of marks to discuss.

Supplier brochure images illustrate application ideas. They are not skyfirelaser customer case studies or a guarantee of results on your material.

Material suitability, mark quality and processing time require assessment of the actual workpiece. Send your material and artwork for a sample assessment.

Before ordering

Equipment questions.

Can I request a material test before choosing equipment?

Yes. Send the material, artwork and target result through our sample assessment page. We will review the request and confirm whether a test can be arranged, together with the sample requirements, cost and timing.

What should I include in an equipment inquiry?

Include the material and surface condition, workpiece size, marking artwork, quantity or expected throughput, delivery country and any required accessories. We can then confirm the proposed configuration and quotation details.

Does a marking inquiry also cover glass cutting?

This page covers surface marking. Glass cutting needs a separate process assessment with material, thickness and drawing details; a successful surface mark does not establish cutting performance.

How is the machine powered, and what should I confirm before ordering?

The confirmed mains input is single-phase 220 V, 50/60 Hz, through a dedicated external adapter. A battery version is not currently offered. Share your delivery country and available supply so the plug and installation arrangements can be checked before ordering. Use the reference dimensions above for initial planning; confirm the shipment details before booking transport.

Does marking require consumables?

The marking process does not use ink or marking cartridges. Lens care and routine maintenance are still needed; confirm the replacement-part requirements with the quotation.

What operating arrangements should I plan for?

The specified operating temperature is 10–35 °C (50–95 °F). Confirm the workspace, laser protection, ventilation and operator training needed for the actual application before use. The supplied configuration and operating instructions should be agreed during equipment selection.

Equipment inquiry

Tell us what you need to mark.

Send the workpiece details and artwork to discuss equipment configuration, accessories and delivery.

  • Material, coating and dimensions
  • Artwork and target mark size
  • Quantity, throughput and delivery country
